Description

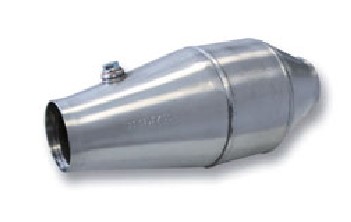

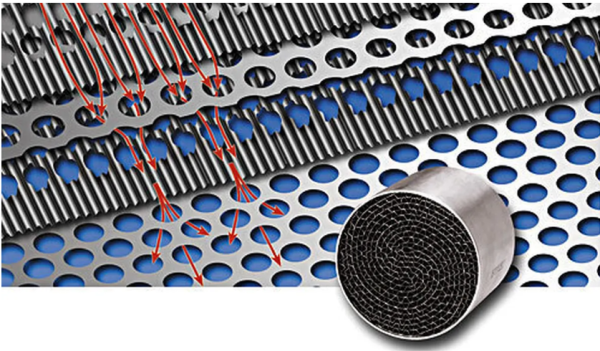

New generation PE catalyst for highly tuned free-breathing and supercharged engines HJS PE catalysts are 30% lighter than conventional CUP catalysts thanks to membrane perforation, while maintaining the same membrane wall thickness (0.11 mm).
At the same time, exhaust pressures have been reduced by up to 15%.
In addition, exhaust emissions have been limited as a result of optimised gas flow.
The lighter membrane (PE) offers the same strength as our other catalyst products.
Dimensions Diameter of the cone: 144 mm Length of the cone: 350 mm Connection size of the exhaust pipe: 76 mm Weight: 3.1 kg Classification: GT 1407/10 PE Flow capacity of the cone: 1000 hp HJS power recommendation: – max 400hp / up to 3000 cc – max 800 hp / up to 6000 cc when installed with two catalysts in parallel
