Description

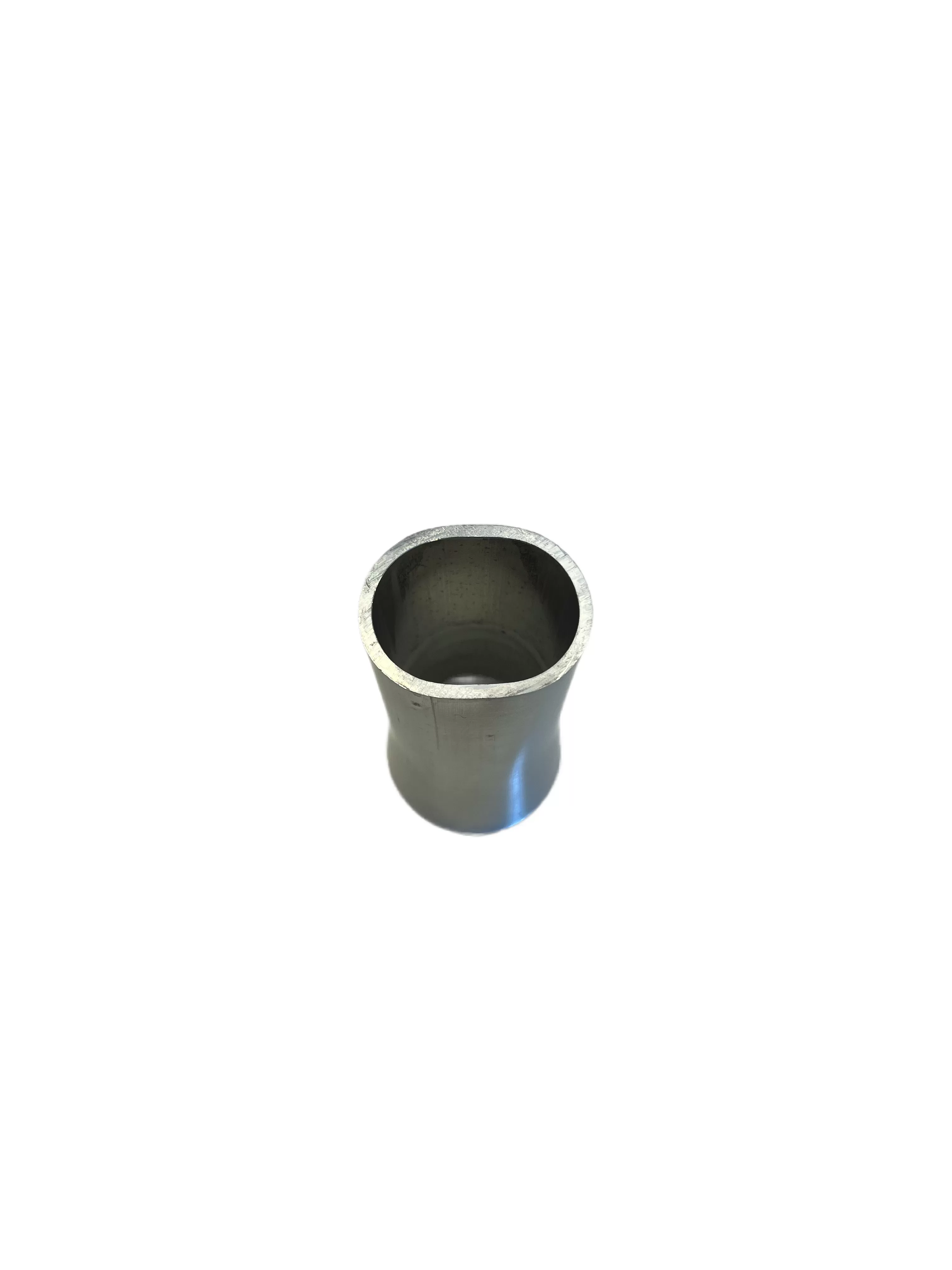

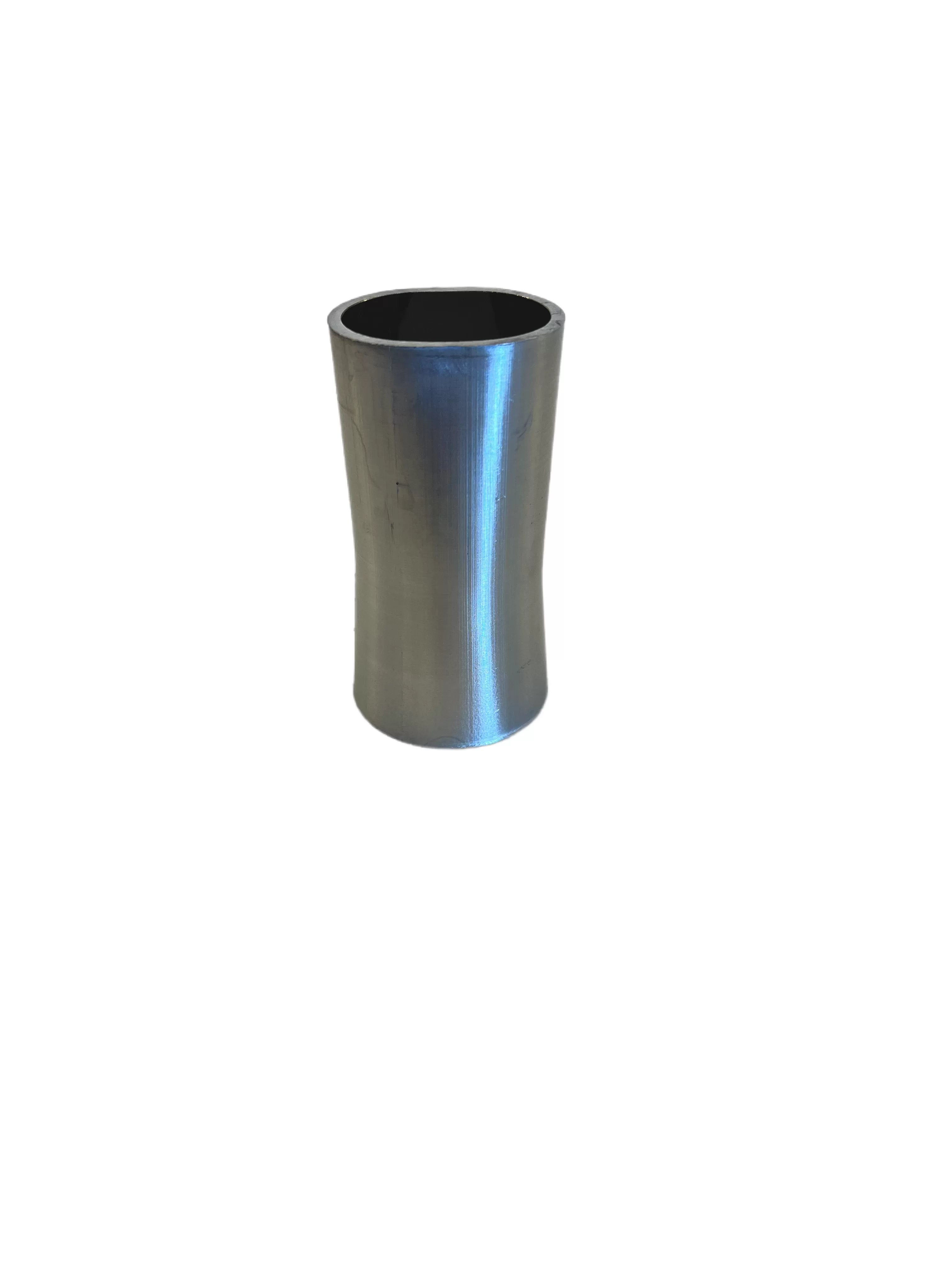

Profiled 6082-grade high quality aluminum alloy runner pipe between the intake manifold flange and pressure box (turbo engines) or throttle bodies (N/A engines).
The progressively tapered shape enhances air flow to the cylinder head.
Runners are available in a variety of sizes and shapes, see options.

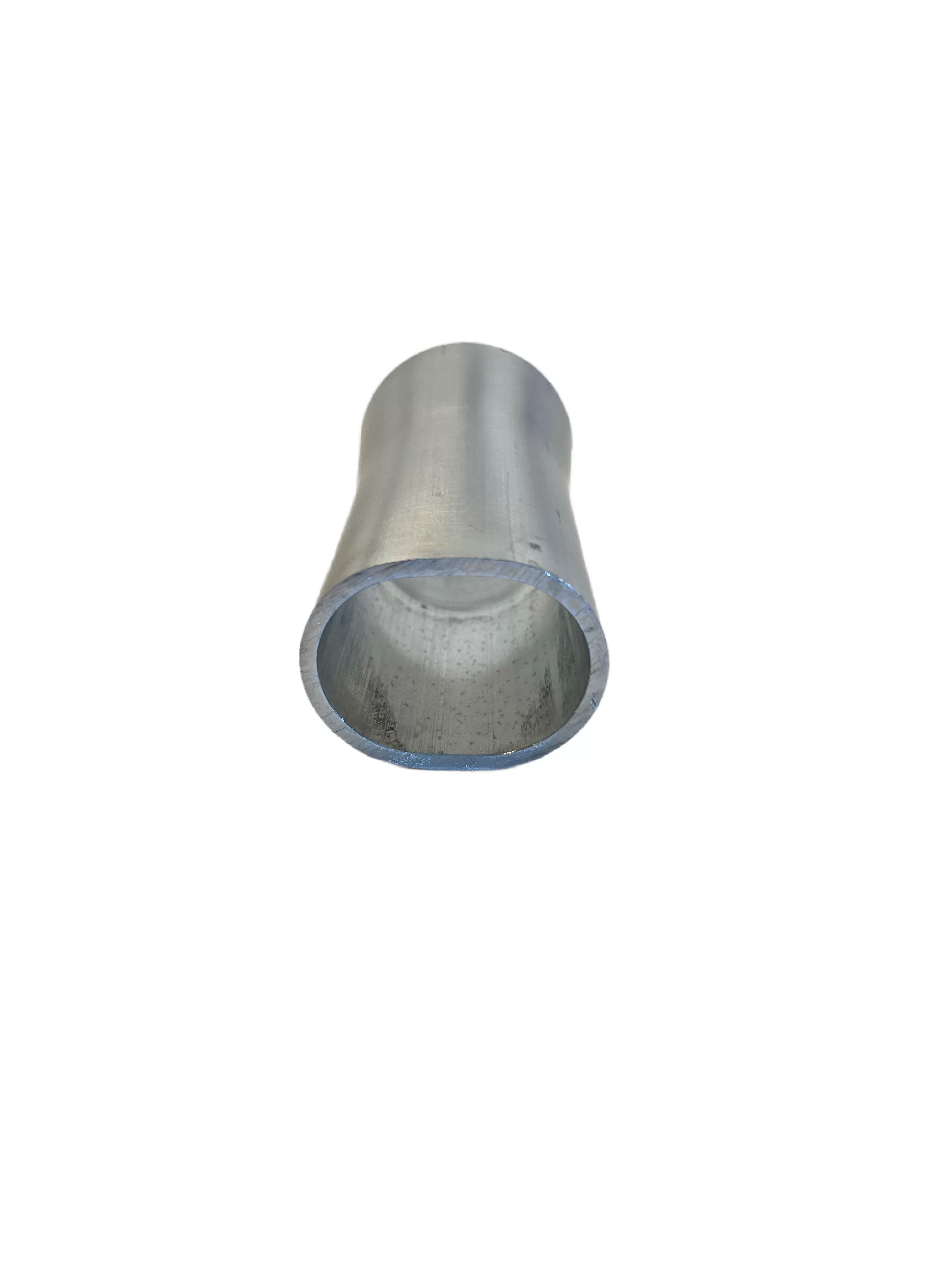

Type 2 runner fits directly on the original intake manifold flange of e.g. Nissan SR20-DET engine
Runner dimensions (see attached diagram for all dimensions):
– length: 100 mm
– round end inner/outer diameter: 46/52 mm
– rectangular end inner dimensions: 43,4 mm x 34 mm
– wall thickness: 3 mm
